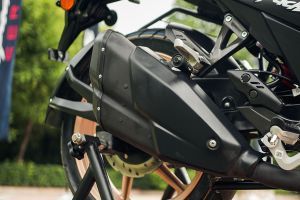

  • Exhaust (End Can) of Apache RTR 160 4V
  • Colours(3)
  • Images(11)

TVS Apache RTR 160 4V TFT with Map Mirroring

4.3/5 2 reviews
Rs. 1.42 Lakh variants
Ex-showroom Price in Moodabidri
View November Offers
Download Brochure

TVS Apache RTR 160 4V TFT with Map Mirroring is the top variant in the Apache RTR 160 4V lineup and is priced at Rs. 1.42 Lakh (ex-showroom, Moodabidri). This TFT with Map Mirroring variant comes with an engine putting out and of max power and max torque respectively. TVS Apache RTR 160 4V TFT with Map Mirroring is available in 3 colours : Arctic Teal, Racing Red and Marine Blue.

  • RTO + OthersRs. 29,019
  • InsuranceRs. 11,074
  • On Road Price in MoodabidriRs. 1.82 Lakh
Engine 159.7 cc
Power 17.55 PS @ 9250 rpm
Torque 14.73 Nm @ 7500 rpm
Gearbox 5 Speed
Dual Channel ABS with USD and TFT

Key Features of Apache RTR 160 4V TFT with Map Mirroring

  • Clock
  • Body Graphics
  • Low Fuel Warning Lamp
  • Low Battery Indicator

TVS Showrooms in Moodabidri

  • Manjunath Motors-Moodabidri, 574227
    Contact Dealer

All Specs & Features of TVS Apache RTR 160 4V TFT with Map Mirroring

Features

Trip Meter
Digital
Navigation Type
Full Maps Navigation
Digital Display Type
TFT
Multi-function Lock
Yes
Additional Features/Information
Glide through Technology,  Panic Brake Alert
Gear Position Indicator
Yes
Rear Footpegs
Yes
ABS Type
Dual Channel
Pillion Grab Rail
Yes
Low battery alert
Yes
Body
Metal
Voice Assist
Yes
Malfunction Indicator
Yes
Handlebar type
Hydroformed Handlebar
Front Footpegs
Forward-set
Riding Modes
Rain,Sports,Urban
Pillion Seat
Yes
Navigation assist
Yes
Daytime Running Lamps
Yes
Kill Switch
Yes
Frame Type
Double Cradle Split Synchro Stiff Frame
Body Type
Sports Naked Bikes
ABS
Dual Channel
Body Graphics
Yes
Bluetooth Connectivity
Bluetooth
Instrument Console Type
Digital
Seat Type
Single
Starting
Self Start Only
Pass Beam Switch
Yes
Speedometer
Digital
Tachometer
Digital
Low Fuel Warning Lamp
Yes
Clock
Yes
Low Battery Indicator
Yes
Cooling System
Air & Oil Cooled
Key Shutter Lock
Yes
Odometer
Digital
Navigation
Yes

Features and Safety

Shift Light
Yes
Saree Guard
Yes

Console Features

Display Size
5 Inches

Engine

Valves (per cylinder)
4
Spark Plugs
1 Per Cylinder
Emission Norm Compliance
bs6.2
Flex Fuel Blend
E20
Claimed Top Speed
114 kmph
Engine Type
SI, 4 Stroke, Oil-Cooled, SOHC, Fuel Injection
Engine Displacement
159.7 cc
Gear Box
5 Speed
Max Power
17.55 PS @ 9250 rpm
Max Torque
14.73 Nm @ 7500 rpm
Bore
62 mm
Stroke
52.9 mm
Number Of Cylinders
1
Drive Type
Chain Drive
Fuel System
Fuel Injection
Fuel Type
Petrol
Ignition
Electric Start
Compression Ratio
10.0:1

Chassis

Frame
Double Cradle Split Synchro Stiff Frame

Transmission

Type
Manual
Gear Shift Pattern
1 Down 4 Up
Indicators
LED

Brakes

Front Caliper
2 Piston
Rear Brake
Disc
Front Brake
Disc
Braking Type
Anti-lock Braking System

Performance and Fuel economy

Mileage (Overall)
41 kmpl

Chassis and Suspension

Front Suspension Preload Adjustment
Yes
Suspension-Front
Upside down Forks with 37D
Suspension-Rear
Mono Shock

Tyres and Wheels

Brake Fluid Grade
DOT4
Tyre Size
Front :-90/90-17, Rear :-130/70-17
Wheel Size
Front :-431.8 mm,Rear :-431.8 mm
Tyre Type
Tubeless
Tyre Make
Eurogrip
Radial Tyre
Yes
Wheels Type (Pressed Steel/ Alloy)
Alloy

Dimensions

Seat height
800 mm
Length*Width*Height
2035*819*1050 mm3
Length
2035 mm
Wheelbase
1357 mm
Height
1050 mm
Ground Clearance
180 mm
Width
819 mm
Fuel Tank Capacity
12 L
Kerb Weight
147 Kg
Tail Light
LED
Front Brake Size
270 mm
Rear Brake Size
240 mm

Electricals

Battery Type
Lead Acid
USB charging port
Yes
Headlight
LED
Battery Capacity
12V / 6AH
Projector head light
Yes
TVS Apache RTR 160 4V Brochure

TVS Apache RTR 160 4V 2026 Brochure

Download brochure for detailed information of specifications, features & variants prices
